Product details

Product description

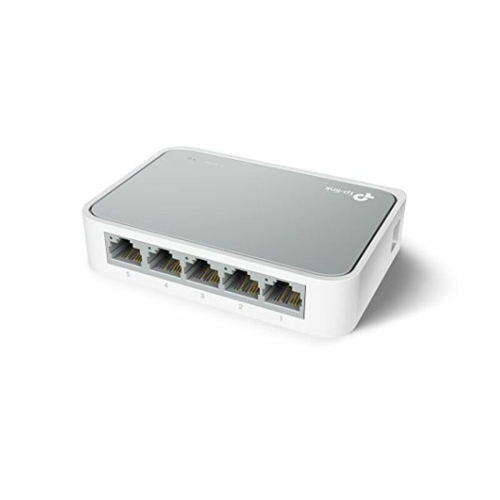

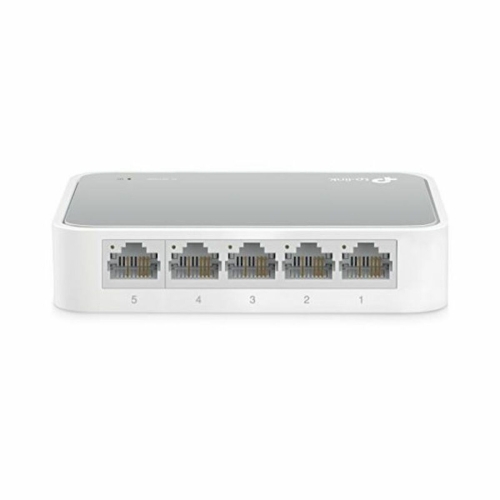

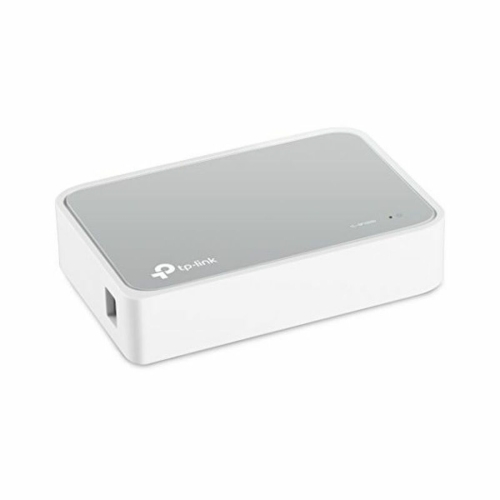

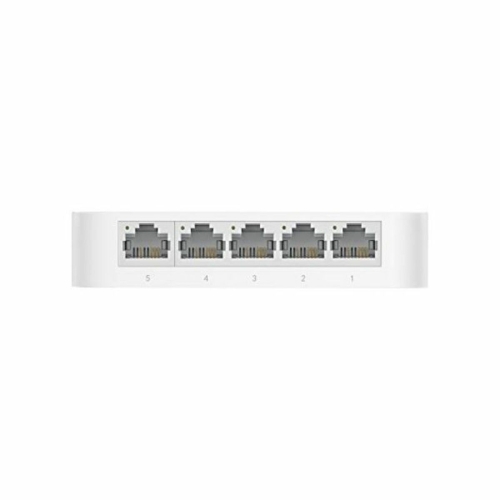

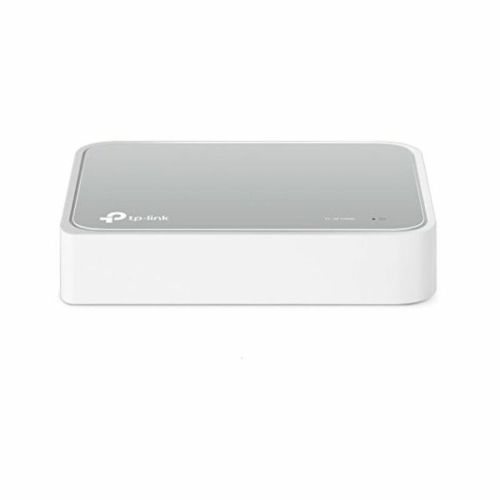

The TL-SF1005D V15 by TP-Link is a compact, reliable desktop switch designed to easily expand a wired network in home or small office environments. It offers 5 RJ45 ports with auto‑negotiation supporting 10/100 Mbps, suitable for connecting computers, network printers, IP cameras or entertainment devices while efficiently managing bandwidth. Its desktop form factor, with a white housing and compact dimensions of approximately 103.5 mm wide and 70 mm deep, makes it easy to place on desks, shelves or work areas with limited space. The unit features LED status indicators on the front panel to quickly check power and port activity at a glance, enabling basic network monitoring without extra tools. For power, it includes a DC 5 V / 0.6 A power adapter and comes with a AC cable compatible with 220 V ~ 50 Hz installations, ensuring stable, efficient consumption. An operating temperature range from -40 °C to 70 °C and humidity from 10% to 90% provide stable performance under typical indoor environmental conditions. The switch includes a user manual for quick setup, and its plug‑and‑play operation allows use without prior configuration or additional software, making it a simple, practical solution to expand network connectivity with multiple Ethernet ports.

• Connections:
  • RJ45
  • RJ45 x 5
• Colour: White
• Voltage:
  • 5 V
  • 220 V
• Power supply:
  • CA cable
  • DC
• Frequency: 50 Hz
• Characteristics: LED in operation indicator
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
• Includes: User manual
• Speed: 10/100 Mbps
• Amperage: 0,6 A

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network. High Performance TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.

• Switch type: Managed
• Quality of Service (QoS) support: Y
• Web-based management: Y
• Basic switching RJ-45 Ethernet ports quantity: 5
• Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
• Fast Ethernet (copper) ports quantity: 5
• Power connector: DC-in jack
• Networking standards: IEEE 802.3u,IEEE 802.3x
• 10G support: N
• Copper ethernet cabling technology: 10BASE-T,100BASE-T
• Full duplex: Y
• Flow control support: Y
• Auto MDI/MDI-X: Y
• Spanning tree protocol: Y
• Ethernet LAN data rates: 10,100 Mbit/s
• Auto-negotiation: Y
• MAC address table: 1000 entries
• Switching capacity: 1.6 Gbit/s
• Store-and-forward: Y
• Supported network protocols: CSMA/CD, TCP/IP
• Rack mounting: N
• Product colour: White
• LED indicators: Y
• Certification: FCC, RoHs
• AC input voltage: 220 V
• AC input frequency: 50 Hz
• Power consumption (typical): 1.87 W
• Power consumption (max): 1.87 W
• Power over Ethernet (PoE): N
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Heat dissipation: 6.4 BTU/h
• Width: 104 mm
• Depth: 22 mm
• Height: 70 mm
• Cables included: AC
• Manual: Y
• Package type: Box
