Product details

Product description

• Connections:
  • 10GBase-T x 4
  • RJ45
• Approx. weight: 3,3 kg
• Approx. dimensions: 44,1 x 20,95 x 4,4 cm
• AC input voltage: 100-240V
• Product with plug: Yes
• Type of plug: Plug EU
• Type: Switch
• Power supply: Electric Network
• Colour: Black
• Voltage:
  • 100-240 V
  • 100 - 240 V
• Ventilator: 2
• Characteristics: LED indicator
• Ports: 24
• Form factor: 1U
• Approx. temperature: - 20ºC / 70°C
• Safety: IGMP

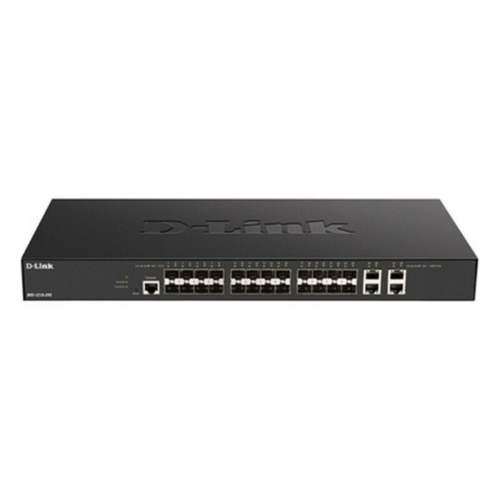

The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10 Gigabit switches capable of servicing a range of network needs in any business environment. The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as either an aggregation/access switch in large enterprise environments or deployed at the core of an SMB network. With high performance and low latency, these 10G smart-managed switches fulfil the needs of virtualisation, cloud services, and server-to-server applications. The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time, inter-VLAN static routing helps by reducing the pressure of routers and backbone networks, improving overall network efficiency. The free D-Link Network Assistant utility allows multiple D-Link devices within the same L2 network to be discovered and managed. These switches also provide management through the multi-lingual web UI, a full command-line interface (CLI) through Telnet, a console port, as well as D-View 7 Network Management System.

• Switch type: Managed
• Quality of Service (QoS) support: Y
• Web-based management: Y
• Basic switching RJ-45 Ethernet ports quantity: 4
• Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
• SFP+ module slots quantity: 24
• Console port: RJ-45
• Networking standards: IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3az,IEEE 802.3u,IEEE 802.3z
• 10G support: Y
• Cable types supported: Cat6,Cat6a,Cat7
• Port mirroring: Y
• Flow control support: Y
• Link aggregation: Y
• Auto MDI/MDI-X: Y
• Spanning tree protocol: Y
• VLAN support: Y
• Number of VLANs: 4094
• MAC address table: 32000 entries
• Switching capacity: 560 Gbit/s
• Throughput: 416.64 Mpps
• Store-and-forward: Y
• Jumbo frames support: Y
• Jumbo frames: 9000
• Access Control List (ACL): Y
• Access Control List (ACL) rules: 256
• IGMP snooping: Y
• Management protocols: SNMP v1/v2c/v3
• GARP VLAN Registration Protocol (GVRP): Y
• Rack mounting: Y
• Form factor: 1U
• Product colour: Black
• LED indicators: Activity, Link, Speed
• Number of fans: 2 fan(s)
• Certification: CE Class A FCC Class A VCCI Class A IC BSMI
• AC input voltage: 100 - 240 V
• Power consumption (max): 85.7 W
• Power over Ethernet (PoE): N
• Operating temperature (T-T): -5 - 50 °C
• Storage temperature (T-T): -20 - 70 °C
• Operating relative humidity (H-H): 0 - 95%
• Storage relative humidity (H-H): 0 - 95%
• Width: 441 mm
• Depth: 209.5 mm
• Height: 44 mm
• Weight: 3.27 kg
• Manual: Y
