If you're passionate about
IT and electronics, like being up to date on technology and don't miss even the slightest details, buy
Switch D-Link DGS-1005P 10 Gbps at an unbeatable price.
The DGS-1005P switch from D-Link is an efficient solution for home networks or small offices that require high connectivity and simplified device management. This black model features 5 RJ-45 ports with Ethernet LAN support, enabling speeds of up to 1 Gbps to ensure fast and stable data transfer between multiple devices. Four of these ports are equipped with PoE (Power over Ethernet) technology, supplying both power and data to compatible devices—such as access points, IP cameras, or VoIP phones—through the same network cable, with a total available power of 30 W. The robust metal and plastic construction provides durability and resistance for daily use, while its compact design makes it ideal for wall mounting, optimizing workspace. The LED indicator on the front panel allows easy monitoring of each port’s status and PoE power, enabling quick and simple visual management. Thanks to its plug and play operation, no prior configuration is required, simplifying installation even in environments without technical experience. The DGS-1005P from D-Link is a solid choice for those looking to expand their local network with advanced PoE features and reliable performance.
- Speed: 10 Gbps
- Connections:
- PoE x 4
- RJ45
- PoE
- Ethernet LAN
- RJ45 x 5
- Colour: Black
- Ports:
- Approx. dimensions: 10 x 9,8 x 2,8 cm
- Type: Switch
- Product with plug: Yes
- Type of plug: Plug EU
- Power supply:
- Electric Network
- Iincluded
- Characteristics:
- Plug & Play
- Wall mounting
- LED indicator
- Plug and play
- Power:
- Material:
- Width: 10 cm
Fast. Compact. Convenient.
The D‑Link DGS‑1005P 5‑Port Desktop Gigabit PoE+ Switch enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), network video cameras and IP phones to the network. Built with home and small business users in mind, the DGS‑1005P is compact and operates silently, making it ideal for most rooms and offices.
Gigabit Performance.
The DGS-1005P features plug-and-play installation and requires no configuration.
Automatic MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. With wire-speed filtering and store-and-forward switching, the DGS-1005P maximises network performance while minimising the transmission of bad network packets.
Power Over Ethernet+
The DGS-1005P features four Gigabit Ethernet ports that support the IEEE 802.3af and IEEE 802.3at PoE, supplying up to 30 W on each PoE port and providing a total power budget of 60 W.
You can connect compatible devices to the DGS-1005P without using an additional power supply. This allows you to save on cabling and power supplies and to install devices on locations without immediate access to power outlets.
Green Technology
The DGS-1005P features green technology such as IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection.
EEE adjusts the power consumption of the switch based on network utilisation, reducing energy use during periods of inactivity. Link status detection powers down unused ports, saving power when connected devices are shut down or disconnected. Cable length detection adjusts the power output of the port based on the cable length, reducing the power requirements of the switch.
Compact and Silent
The compact design of the DGS-1005P allows placement in most locations, including those where space is at a premium.
The desktop form factor provides everything you need to set up a new network or expand an existing network, while the fanless design ensures silent operation even in noise-sensitive areas such as workstations and meeting rooms.
- Switch type: Unmanaged
- Switch layer: L2
- Quality of Service (QoS) support: Y
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 5

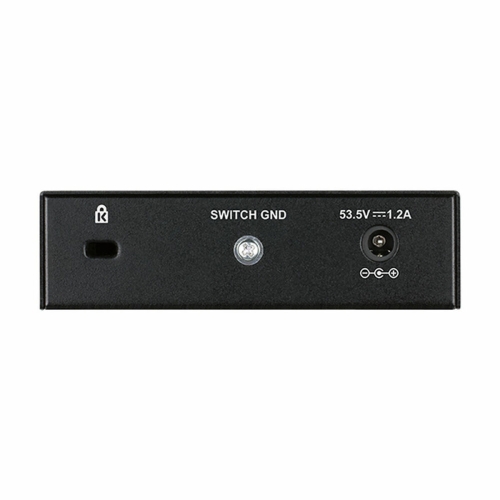

- Power connector: DC-in jack
- Networking standards: IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
- 10G support: N
- Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T
- Full duplex: Y
- Auto MDI/MDI-X: Y
- MAC address auto-learning supported: Y
- MAC address table: 2000 entries
- Switching capacity: 10 Gbit/s
- Store-and-forward: Y
- Jumbo frames support: Y
- Packet filtering: 7.44 Mpps
- Rack mounting: N
- Product colour: Black
- Housing material: Metal
- LED indicators: Activity, Link, PoE, Power, Speed, Status
- Wall mountable: Y
- Certification: CE, BSMI, FCC , VCCI, RCM, cUL, CB, LVD, BSMI
- Buffer size: 64 KB
- Plug and Play: Y
- Power supply included: Y
- Power over Ethernet (PoE): Y
- Power over Ethernet (PoE) ports quantity: 4
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 60 W
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Width: 100 mm
- Depth: 98 mm
- Height: 28 mm
- Weight: 260 g
